Alignment programs and a number of other tools use their own specific index to speed up their tasks. Since you will align reads using bowtie, you need a genome bowtie index.

This year, your Galaxy server already contains this bowtie index.

Optional

Bellow is the procedure which has been followed to build this index. If you wish, you can easily repeat it in another history (name it Bowtie index buid up), starting from the latest version of the Drosophila melanogaster genome fasta file.

In Galaxy, indexing tasks are preceeded by a "fetch and dbkey" task, whose purpose is to implement the Galaxy database and inform it of the existence of this genome and of possible derived indexes.

1. 🔧 Prepare the Drosophila genome dmel-all-chromosome-r6.65 for indexation.

In a new history dmel_r6.65 bowtie index upload this URL:

https://s3ftp.flybase.org/genomes/Drosophila_melanogaster/dmel_r6.65_FB2025_04/fasta/dmel-all-chromosome-r6.65.fasta.gz
To do so, use the Upload button at the top-left corner of the Galaxy interface, click the Past/Fetch data button and paste the above URL.

If you click on the name of the dataset, you will expand the (green) dataset box and see that it is a fasta format dataset which contains 1870 sequences.

Indeed, the dataset contains the main Drosophila chromosomes X, Y, 2 (L and R), 3 (L and R) and 4, but also many unmapped contig sequences and possibly some minor haplotypes.

Thus, before indexing our Drosophila genome, we are going to clean it a little bit by,

  • simplifying the fasta headers (keeping only the characters before the first space)
  • and explicitly picking only the aforementioned chromosomes.

A. 🔧 simplify fasta headers

We will first need to use a Galaxy tool that is able to do advanced search/replacement using regular expressions. This tool is 🔧 Regex Find And Replace.

  • Select the tool 🔧 Regex Find And Replace (Galaxy Version 1.0.3) in the tool sub-menu Analyse des Génomes. Note that now that the tool is installed, you can find it by typing Regex Find And Replace in the search box at the top of the tool bar.

fill the form of 🔧 [Regex Find And Replace]

  • Select lines from: 1. dmel-r6.65-fasta
  • Check: Click Insert Check

  • Find Regex:

     .+

    ⚠ this is one space, followed by a dot, followed by a sign plus.

  • Replacement: Nothing ⚠ be sure that the remplacement box is empty

  • Click ▶Run Tool
  • Note that is will take a few seconds before the tool starts, because the input dataset is automatically converted from the fasta.gz to the fasta format (uncompressed).
  • Now, you can use the 👁 icon to compare the new dataset with the initial genome dataset.
What can you say, at least for the chromosome 2L ?

The visible header is now >2L. It was >2L type=golden_path; loc=2L:1..23513712; ID=2L; dbxref=GB:AE014134,GB:AE014134, REFSEQ:NT_033779; MD5=b6a98b7c676bdaa11ec9521ed15aff2b; length=23513712; release=r6.65; species=Dmel; before !

  • Create a short list of string "on the fly" with 🔧 [Upload Data]
  • Click the Upload Data menu
  • Click the Paste/Fetch Data button
  • Give a name to the dataset (chromosome_list in replacement of New File)
  • In the main Paste field copy this list:
    X
Y
2L
2R
3L
3R
4
  • Click the Start dark blue button
  • Select the tool 🔧 Pick Fasta sequences with header satisfying a string query (Galaxy Version 3.0.3) in the tool sub-menu Analyse des Génomes. You may also use The tool search box.

Fill the form of 🔧 Pick Fasta sequences

  • Source file: 14. Regex Find And Replace on data 1
  • for a: Check list of string
  • retrieve sequences whose headers...: exactly + contain one of this list string
  • list of strings dataset: 13. chromosome_list
  • Click ✔Execute
  • Rename the created dataset using the pencil icon ✏ as dmel-MAIN-chromosome-r6.65
What can you notice if you look at dmel-MAIN-chromosome-r6.65 ?

The number of fasta sequence is 7 sequences

How can we check that the right chromosomes have been collected in the dataset ?

Use the 🔧 Select lines that match an expression (Galaxy Version 1.0.3)

  • Select lines from: dmel-MAIN-chromosome-r6.65
  • that: Matching
  • the pattern: ^>
  • Keep header line: No
  • Click ▶Run Tool

From the result, can you deduce the role of the caret sign ^ in the regular expression ?

B. 🔧 Declare the dmel-MAIN-chromosome-r6.65 dataset as a reference to Galaxy.

Now that we have a "clean" Drosophila reference genome in fasta format, it is time to notice it to Galaxy. This is an administrator task which we are going to perform.

  • Go to the Admin menu (in the top menu bar)
  • In the left bar of the Admin board, click Local Data
  • Click on the data manager tool 🔧 Create DBKey and Reference Genome fetching

  • Note that the form of the tool opens in a new browser window

Fill the form of 🔧 Create DBKey and Reference Genome fetching

  • Use existing dbkey or create a new one.: New
  • dbkey: Choose a simple identifier such as dmel-r6.65
  • Display name for dbkey: Leave this field empty
  • Name of Sequence: Leave this field empty
  • ID for sequence: Leave this field empty
  • Choose the source for the reference genome: History
  • FASTA file: dmel-MAIN-chromosome-r6.65
  • Sort by chromosome name: As is
  • Click ▶Run Tool

A new dataset is created, which contain the metadata of the new genome declared to Galaxy, in a json format. This dataset is just a report and is not specially important, it can even be deleted.

In contrast, if you go back to other Galaxy web page with the local data management board, you can now click on the Tool Data Tables __dbkeys__ and all_fasta and see that the Galaxy database now contains informations in these tables about the dmel-r6.65 reference genome.

2. 🔧 Index dmel-r6.65 for Bowtie.

Now that the dmel-r6.65 genome is referenced in Galaxy with a dbkey, it is easy to prepare corresponding indexes for the aligner Bowtie.

  • Go back to the local data manager board
  • Click on the data manager Bowtie index builder

Fill the form of 🔧 Bowtie index builder

  • Source FASTA Sequence: dmel-r6.65 (no other choice !)
  • Name of Sequence: Leave this field empty
  • ID for sequence: Leave this field empty
  • Click ▶Run Tool

→ A new dataset Bowtie index is created and the orange color and running wheel indicate that the job is ongoing to create the bowtie index.

It will take several minutes.

Your Cloud Galaxy is now ready for analyses with the other trainers

3. After Work Sessions (review)

  • Suspend your Google VM
Suspend VM instance

⚠ Keep in mind that a VM instance is charged by Google (on your coupon) when it is running. If you SUSPEND your instance, there is no more cost of computing (calculated in fonction of minutes of activity).

  • At the end of the week (only), stop your VM instance
Stop your Google VM

⚠ When all your instances are stopped, the cost of your storage devices (200 or 300 Gb) is still recorded. Fortunately, this cost is reduced and you can keep your ~200 Gb disk for many weeks with your coupon.

  • Protect your instance from self-destruction pulsions
Protect your instance from unwanted destruction.

In some occasion, it is possible to be confused between arrêter and détruire a VM. The consequences of unwanted VM destruction are irreversible as well as annoying. To prevent this, you can protect your instance from the destruction command.

  • Go to the Google Cloud Platform management web page.
  • Click on the name of your VM.
  • Click on the top menu ✏Modifier

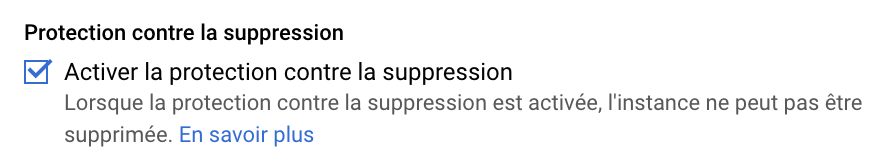

  • Edit the Protection contre la suppression option as follows:

(just at the end of the section Informations générales) and do not forget to save this new setting.

From this point, you will need to uncheck the box to destroy the instance and your are protected against unwanted manifestations of bad karma 👿!
